Gleissystem von Kato Unitrack N Gleisen
Radien
- 718*
- 481*
- 381
- 348
- 315
- 282
- 249
- 216
- 183
- 150*
- 117/45
Geraden
Standardlängen (in mm)
- 62 1/4
- 124 1/2
- 186 3/4
- 248 1/1
- 64 (entspr 62 bei 15 Grad Drehung)
- 29 (Set A)
- 45 (Set A)
- 33 (Set B)
- 38 (Set B)
- 59 angeschnitten (mit Weiche 481)
- 60 (mit Weiche 481)
- 45.5 (mit 90Grad Kreuzung)
Sonderlängen (in mm)
Weichen
- 481/15°
- 718/15° 186
- 150/45° 124
- DKW 310mm lang (1 1/4) 33mm Gleisabstand
- Gleiswechsel 248mm, 33mm GLeisabstand
- Y-Weiche 481, 2 x 15°
- 90 Grad Kreuzung 33mm
- 15 Grad Kreuzung 186mm
Gleisabstände
33 (Standard eng), 48, 49.5, 66mm

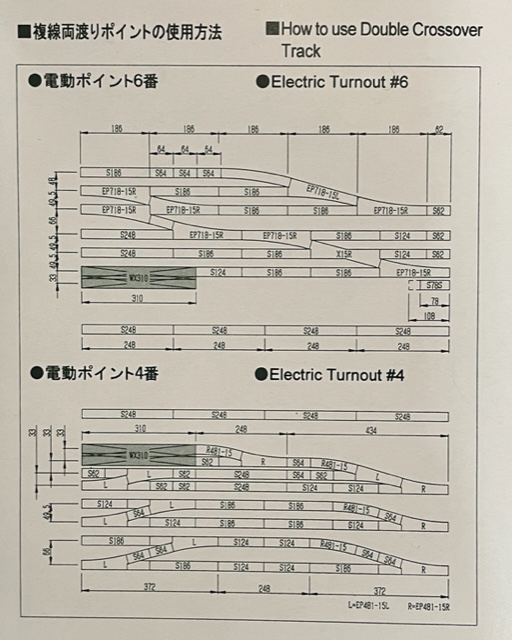

Gleissystem lt. Packung
und lt. Kato Unitrack Webseite (aber ganz arg versteckt).
Weitere Links bzgl. Gleissystem
Geometrien auf anyrail.com (incl. Gleisdreieck)
